Checkout Integration Overview

Learn how to connect Fanfare experiences to your checkout flow, from admission to order completion.

Overview

When a consumer is admitted through a Fanfare experience (queue, draw, or auction), they receive an admission token. This guide explains how to securely transition consumers from admission to checkout and complete their purchase. What you’ll learn:

Understanding the admission-to-checkout flow
Working with admission tokens
Handoff patterns for different platforms
Completing the checkout cycle

Complexity: Beginner Time to complete: 25 minutes

Prerequisites

Fanfare SDK integrated and working
An existing checkout system
Understanding of your e-commerce platform

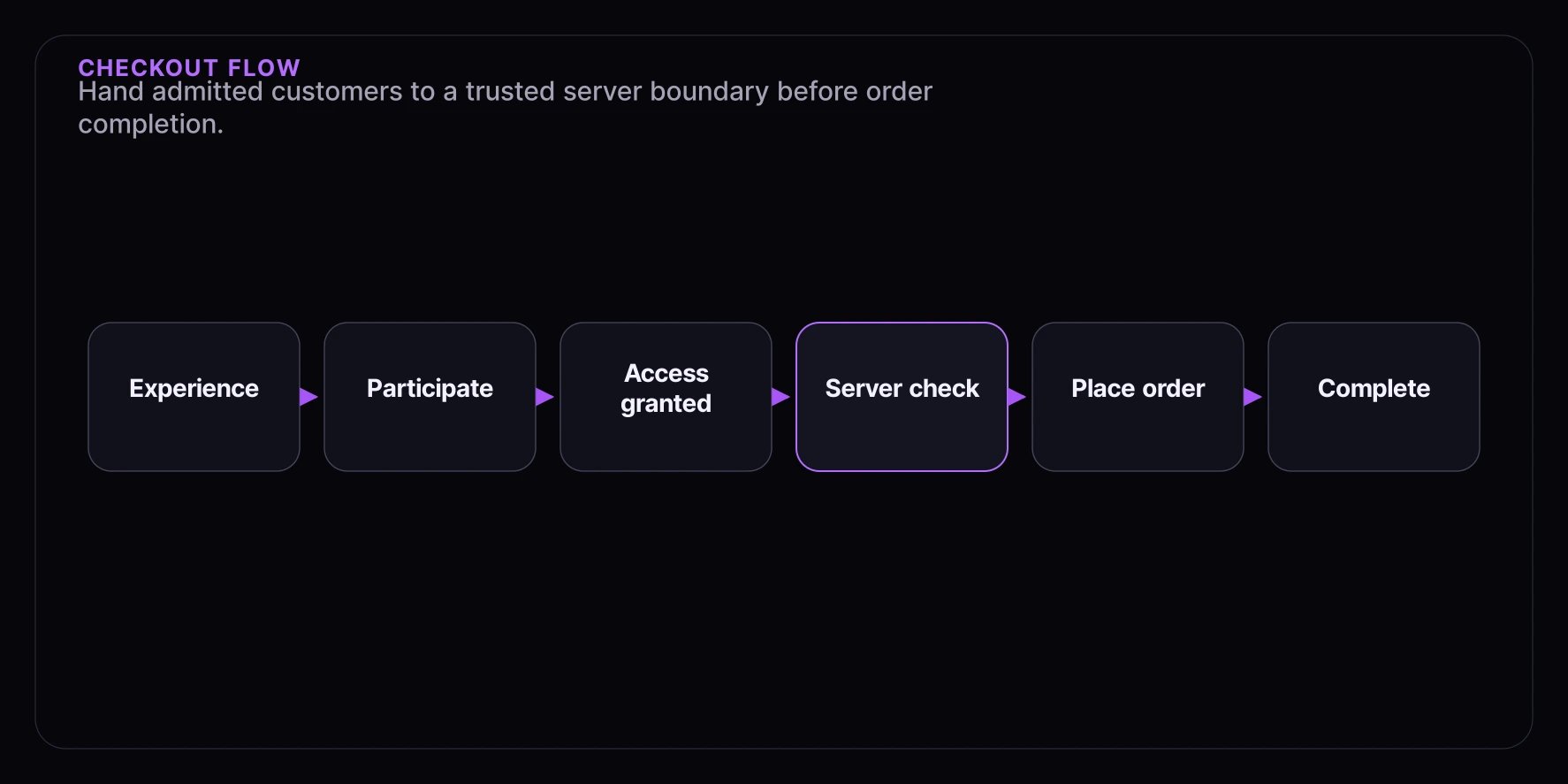

The Checkout Flow

┌─────────────────────────────────────────────────────────────────────┐
│                        Consumer Journey                              │
└─────────────────────────────────────────────────────────────────────┘

   ┌──────────┐     ┌──────────┐     ┌──────────┐     ┌──────────┐
   │  Enter   │     │  Wait/   │     │ Admitted │     │ Complete │
   │Experience│────▶│Participate│────▶│(Token)   │────▶│ Checkout │
   └──────────┘     └──────────┘     └──────────┘     └──────────┘
                                           │
                                           │ Admission Token
                                           ▼
                                    ┌──────────┐
                                    │ Validate │
                                    │  Token   │
                                    └──────────┘
                                           │
                                           ▼
                                    ┌──────────┐
                                    │  Place   │
                                    │  Order   │
                                    └──────────┘
                                           │
                                           ▼
                                    ┌──────────┐
                                    │ Complete │
                                    │Admission │
                                    └──────────┘

Understanding Admission Tokens

When a consumer is admitted (reaches the front of a queue, wins a draw, wins an auction), they receive an admission token. This token:

Proves they were legitimately admitted
Has an expiration time (typically 10-30 minutes)
Can be validated server-side
Should only be used once

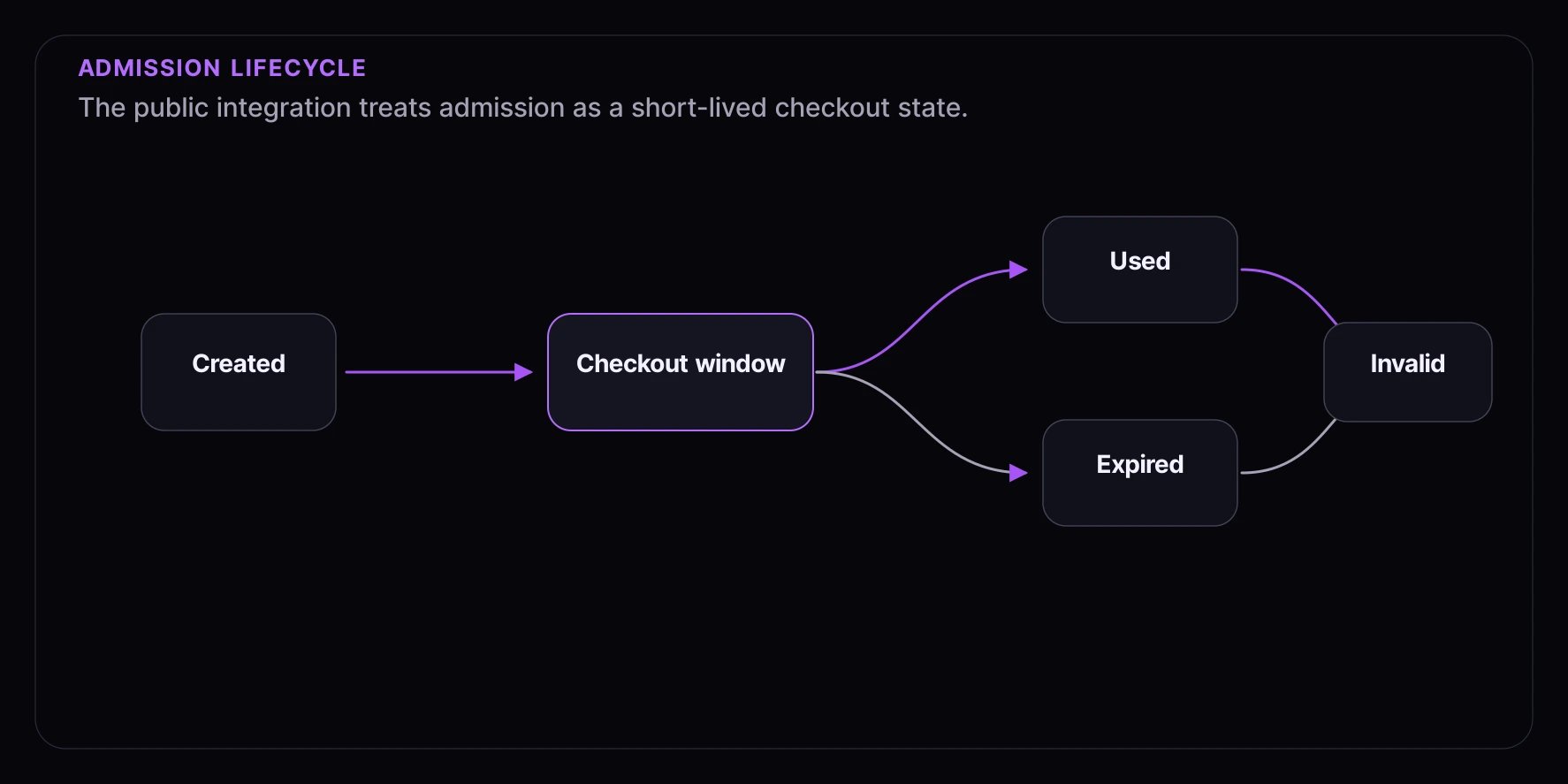

Token Lifecycle

Created ──▶ Valid ──▶ Used/Expired ──▶ Invalid
   │          │            │              │
   │          │            │              │
10 min    Checkout      Complete      Rejected
expiry     window        order

Step 1: Detect Admission

When a consumer is admitted, the journey state changes:

import { useExperienceJourney } from "@waitify-io/fanfare-sdk-react";
import { useEffect } from "react";

function ExperienceWithCheckout({ experienceId }: { experienceId: string }) {
  const { state, journey } = useExperienceJourney(experienceId, { autoStart: true });

  useEffect(() => {
    const snapshot = state?.snapshot;
    if (!snapshot) return;

    // Detect admission
    if (snapshot.sequenceStage === "admitted") {
      const { admittanceToken, admittanceExpiresAt } = snapshot.context;

      console.log("Consumer admitted!", {
        token: admittanceToken,
        expiresAt: new Date(admittanceExpiresAt!),
      });

      // Optionally auto-redirect to checkout
      // navigateToCheckout(admittanceToken);
    }
  }, [state?.snapshot.sequenceStage]);

  return <YourExperienceUI state={state} journey={journey} />;
}

Step 2: Show Checkout Call-to-Action

Display a clear checkout action when admitted:

function AdmittedState({ admissionToken, expiresAt }: { admissionToken: string; expiresAt: number }) {
  const [timeRemaining, setTimeRemaining] = useState(Math.max(0, Math.floor((expiresAt - Date.now()) / 1000)));

  useEffect(() => {
    const interval = setInterval(() => {
      const remaining = Math.max(0, Math.floor((expiresAt - Date.now()) / 1000));
      setTimeRemaining(remaining);

      if (remaining <= 0) {
        clearInterval(interval);
      }
    }, 1000);

    return () => clearInterval(interval);
  }, [expiresAt]);

  const formatTime = (seconds: number) => {
    const mins = Math.floor(seconds / 60);
    const secs = seconds % 60;
    return `${mins}:${secs.toString().padStart(2, "0")}`;
  };

  const handleCheckout = () => {
    // Navigate to checkout with token
    window.location.href = `/checkout?admission_token=${admissionToken}`;
  };

  if (timeRemaining <= 0) {
    return (
      <div className="admission-expired">
        <h2>Access Expired</h2>
        <p>Your checkout window has expired. Please rejoin the experience.</p>
      </div>
    );
  }

  return (
    <div className="admitted-state">
      <div className="success-icon">✓</div>
      <h2>You're In!</h2>
      <p>You have access to complete your purchase.</p>

      <div className="timer">
        <span className="time">{formatTime(timeRemaining)}</span>
        <span className="label">remaining</span>
      </div>

      <button onClick={handleCheckout} className="checkout-button">
        Continue to Checkout
      </button>

      <p className="warning">Don't close this page until you complete your purchase.</p>
    </div>
  );
}

Step 3: Pass Token to Checkout

Several patterns for passing the admission token to your checkout:

URL Parameter (Simple)

// From experience page
function navigateToCheckout(token: string) {
  window.location.href = `/checkout?admission_token=${token}`;
}

// In checkout page
function CheckoutPage() {
  const params = new URLSearchParams(window.location.search);
  const admissionToken = params.get("admission_token");

  if (!admissionToken) {
    return <NoAccessMessage />;
  }

  return <CheckoutForm admissionToken={admissionToken} />;
}

Session Storage (Recommended)

// Store token before navigation
function navigateToCheckout(token: string, context: AdmissionContext) {
  sessionStorage.setItem(
    "fanfare_admission",
    JSON.stringify({
      token,
      context,
      storedAt: Date.now(),
    })
  );
  window.location.href = "/checkout";
}

// Retrieve in checkout
function useAdmissionToken() {
  const [admission, setAdmission] = useState<StoredAdmission | null>(null);

  useEffect(() => {
    const stored = sessionStorage.getItem("fanfare_admission");
    if (stored) {
      const data = JSON.parse(stored);
      // Validate it's not too old
      if (Date.now() - data.storedAt < 30 * 60 * 1000) {
        // 30 minutes
        setAdmission(data);
      } else {
        sessionStorage.removeItem("fanfare_admission");
      }
    }
  }, []);

  return admission;
}

SDK Handoff Module (Full Featured)

Use the built-in handoff module for secure token handling:

import { HandoffModule } from "@waitify-io/fanfare-sdk-core";

const handoff = new HandoffModule();

// Create handoff token (includes security features)
async function createCheckoutHandoff(
  admissionToken: string,
  consumerId: string,
  organizationId: string,
  experienceId: string,
  experienceType: "queue" | "draw" | "auction"
) {
  const token = await handoff.createHandoffToken({
    admissionToken,
    consumerId,
    organizationId,
    experienceId,
    experienceType,
    expiresIn: 600, // 10 minutes
  });

  // Build URL with token
  const checkoutUrl = handoff.buildHandoffUrl({
    baseUrl: "https://your-store.com/checkout",
    token,
  });

  return checkoutUrl;
}

Step 4: Validate Admission Server-Side

Before allowing checkout, validate the token with Fanfare:

// Your checkout API endpoint
app.post("/api/checkout", async (req, res) => {
  const { admissionToken, consumerId, distributionId, distributionType, cart } = req.body;

  // 1. Validate admission with Fanfare
  const isValid = await validateAdmissionToken({
    token: admissionToken,
    consumerId,
    distributionId,
    distributionType,
  });

  if (!isValid) {
    return res.status(403).json({
      error: "Invalid admission",
      code: "ADMISSION_INVALID",
      message: "Your access has expired or is invalid. Please try again.",
    });
  }

  // 2. Process the order
  const order = await createOrder(cart, consumerId);

  // 3. Mark admission as completed
  await completeAdmission(distributionId, distributionType, consumerId);

  res.json({ orderId: order.id });
});

Step 5: Complete the Admission

After a successful order, mark the admission as complete:

async function completeAdmission(
  distributionId: string,
  distributionType: "queue" | "draw" | "auction",
  consumerId: string
) {
  const endpoints = {
    queue: `/queues/${distributionId}/complete`,
    draw: `/draws/${distributionId}/complete`,
    auction: `/auctions/${distributionId}/complete`,
  };

  await fetch(`${FANFARE_API_URL}${endpoints[distributionType]}`, {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
      "X-Organization-Id": FANFARE_ORG_ID,
      "X-Secret-Key": FANFARE_SECRET_KEY,
    },
    body: JSON.stringify({ consumerId }),
  });
}

Integration Patterns

Pattern 1: Same-Site Checkout

When checkout is on the same domain:

// Simple navigation with URL params
function handleAdmitted(token: string) {
  window.location.href = `/checkout?token=${token}`;
}

Pattern 2: External Checkout (Shopify, etc.)

When checkout is on a different domain:

import { HandoffModule } from "@waitify-io/fanfare-sdk-core";

async function handleAdmitted(admissionContext: AdmissionContext) {
  const handoff = new HandoffModule();

  // Create secure handoff token
  const token = await handoff.createHandoffToken({
    admissionToken: admissionContext.token,
    consumerId: admissionContext.consumerId,
    organizationId: admissionContext.organizationId,
    experienceId: admissionContext.experienceId,
    experienceType: admissionContext.type,
  });

  // Redirect to external checkout
  const checkoutUrl = handoff.buildHandoffUrl({
    baseUrl: "https://your-store.myshopify.com/checkout",
    token,
    additionalParams: {
      cart: encodeURIComponent(JSON.stringify(cart)),
    },
  });

  window.location.href = checkoutUrl;
}

Pattern 3: Embedded Checkout

When checkout happens in an iframe/modal:

function EmbeddedCheckout({ admissionToken, onComplete }: Props) {
  const iframeRef = useRef<HTMLIFrameElement>(null);

  useEffect(() => {
    // Listen for checkout completion message
    const handleMessage = (event: MessageEvent) => {
      if (event.data.type === "checkout-complete") {
        onComplete(event.data.orderId);
      }
    };

    window.addEventListener("message", handleMessage);
    return () => window.removeEventListener("message", handleMessage);
  }, [onComplete]);

  return <iframe ref={iframeRef} src={`/checkout/embedded?token=${admissionToken}`} className="checkout-iframe" />;
}

Handling Edge Cases

Token Expiration During Checkout

function CheckoutForm({ admissionToken, expiresAt }: Props) {
  const [isExpired, setIsExpired] = useState(Date.now() > expiresAt);

  useEffect(() => {
    if (isExpired) return;

    const timeout = setTimeout(() => {
      setIsExpired(true);
    }, expiresAt - Date.now());

    return () => clearTimeout(timeout);
  }, [expiresAt, isExpired]);

  if (isExpired) {
    return (
      <div className="checkout-expired">
        <h2>Session Expired</h2>
        <p>Your checkout session has expired.</p>
        <a href="/experience">Return to Experience</a>
      </div>
    );
  }

  return <YourCheckoutForm />;
}

Network Errors

async function submitOrder(orderData: OrderData) {
  try {
    const response = await fetch("/api/checkout", {
      method: "POST",
      body: JSON.stringify(orderData),
    });

    if (!response.ok) {
      const error = await response.json();

      if (error.code === "ADMISSION_INVALID") {
        // Token is invalid or expired
        showError("Your access has expired. Please rejoin the experience.");
        redirectToExperience();
        return;
      }

      throw new Error(error.message);
    }

    return response.json();
  } catch (error) {
    // Network error - allow retry
    showError("Connection error. Please try again.");
  }
}

Page Refresh

function CheckoutPage() {
  const [admission, setAdmission] = useState<StoredAdmission | null>(null);

  useEffect(() => {
    // Try to restore admission from session storage
    const stored = sessionStorage.getItem("fanfare_admission");
    if (stored) {
      setAdmission(JSON.parse(stored));
    } else {
      // No admission found - redirect to experience
      window.location.href = "/experience";
    }
  }, []);

  if (!admission) {
    return <LoadingSpinner />;
  }

  return <CheckoutForm admission={admission} />;
}

Checkout Success/Failure Handling

Success Flow

async function handleCheckoutSuccess(orderId: string) {
  // 1. Clear admission data
  sessionStorage.removeItem("fanfare_admission");

  // 2. Complete admission (mark as used)
  await completeAdmission();

  // 3. Track success
  analytics.track("checkout_complete", { orderId });

  // 4. Show confirmation
  navigate(`/order-confirmation/${orderId}`);
}

Failure Flow

async function handleCheckoutFailure(error: Error) {
  // Don't clear admission - allow retry
  console.error("Checkout failed:", error);

  // Track failure
  analytics.track("checkout_failed", { error: error.message });

  // Show error - user can retry
  showError("Checkout failed. Please try again.");
}

Best Practices

1. Show Clear Timing

Always display remaining time prominently:

<div className="checkout-timer">
  <span>{formatTime(timeRemaining)}</span>
  <span>to complete checkout</span>
</div>

useEffect(() => {
  const handleBeforeUnload = (e: BeforeUnloadEvent) => {
    if (hasAdmissionToken && !orderComplete) {
      e.preventDefault();
      e.returnValue = "You have an active checkout session. Are you sure you want to leave?";
    }
  };

  window.addEventListener("beforeunload", handleBeforeUnload);
  return () => window.removeEventListener("beforeunload", handleBeforeUnload);
}, [hasAdmissionToken, orderComplete]);

3. Validate Early

Validate the admission token as soon as the checkout page loads, not just on submit:

useEffect(() => {
  async function validateOnLoad() {
    const isValid = await validateAdmission(admissionToken);
    if (!isValid) {
      redirectToExperience();
    }
  }
  validateOnLoad();
}, [admissionToken]);

What’s Next

Cart Reservation - Hold inventory during checkout
Payment Processing - Integrate payment providers
Order Completion - Handle order webhooks
Shopify - Shopify-specific integration

Overview

Integration Patterns

Authentication

Checkout Integration

Platform Integrations

Use Cases

Advanced

Checkout overview

Checkout Integration Overview

Overview

Prerequisites

The Checkout Flow

Understanding Admission Tokens

Token Lifecycle

Step 1: Detect Admission

Step 2: Show Checkout Call-to-Action

Step 3: Pass Token to Checkout

URL Parameter (Simple)

Session Storage (Recommended)

SDK Handoff Module (Full Featured)

Step 4: Validate Admission Server-Side

Step 5: Complete the Admission

Integration Patterns

Pattern 1: Same-Site Checkout

Pattern 2: External Checkout (Shopify, etc.)

Pattern 3: Embedded Checkout

Handling Edge Cases

Token Expiration During Checkout

Network Errors

Page Refresh

Checkout Success/Failure Handling

Success Flow

Failure Flow

Best Practices

1. Show Clear Timing

2. Prevent Accidental Navigation

3. Validate Early

What’s Next

Overview

Integration Patterns

Authentication

Checkout Integration

Platform Integrations

Use Cases

Advanced

Documentation Index

​Checkout Integration Overview

​Overview

​Prerequisites

​The Checkout Flow

​Understanding Admission Tokens

​Token Lifecycle

​Step 1: Detect Admission

​Step 2: Show Checkout Call-to-Action

​Step 3: Pass Token to Checkout

​URL Parameter (Simple)

​Session Storage (Recommended)

​SDK Handoff Module (Full Featured)

​Step 4: Validate Admission Server-Side

​Step 5: Complete the Admission

​Integration Patterns

​Pattern 1: Same-Site Checkout

​Pattern 2: External Checkout (Shopify, etc.)

​Pattern 3: Embedded Checkout

​Handling Edge Cases

​Token Expiration During Checkout

​Network Errors

​Page Refresh

​Checkout Success/Failure Handling

​Success Flow

​Failure Flow

​Best Practices

​1. Show Clear Timing

​2. Prevent Accidental Navigation

​3. Validate Early

​What’s Next

Checkout Integration Overview

Overview

Prerequisites

The Checkout Flow

Understanding Admission Tokens

Token Lifecycle

Step 1: Detect Admission

Step 2: Show Checkout Call-to-Action

Step 3: Pass Token to Checkout

URL Parameter (Simple)

Session Storage (Recommended)

SDK Handoff Module (Full Featured)

Step 4: Validate Admission Server-Side

Step 5: Complete the Admission

Integration Patterns

Pattern 1: Same-Site Checkout

Pattern 2: External Checkout (Shopify, etc.)

Pattern 3: Embedded Checkout

Handling Edge Cases

Token Expiration During Checkout

Network Errors

Page Refresh

Checkout Success/Failure Handling

Success Flow

Failure Flow

Best Practices

1. Show Clear Timing

2. Prevent Accidental Navigation

3. Validate Early

What’s Next
