Order Completion Guide

Learn how to properly complete the Fanfare admission cycle after a successful order, including webhook handling and order status updates.

Overview

After a consumer completes checkout, you need to notify Fanfare that the admission was used. This enables accurate analytics, prevents reuse, and triggers any configured webhooks. What you’ll learn:

Completing admissions after successful orders
Handling order webhooks from your platform
Syncing order status with Fanfare
Implementing retry logic

Complexity: Intermediate Time to complete: 25 minutes

Prerequisites

Payment Processing guide completed
Understanding of webhooks
Backend server for processing

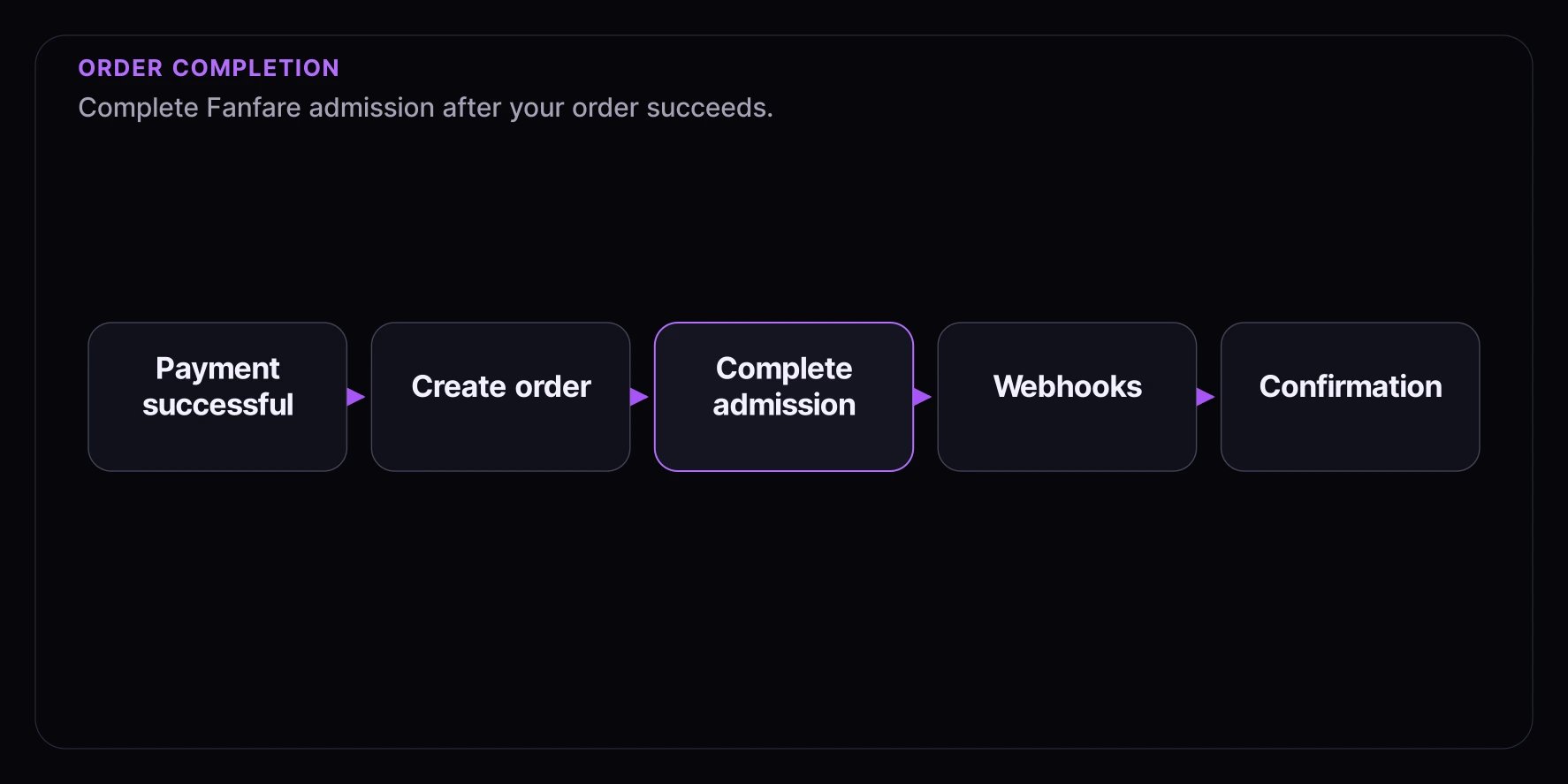

The Completion Flow

Payment Successful
       │
       ▼
┌──────────────────┐
│  Create Order    │
│  in Your System  │
└──────────────────┘
       │
       ▼
┌──────────────────┐
│ Complete Fanfare │
│    Admission     │
└──────────────────┘
       │
       ▼
┌──────────────────┐
│ Fanfare Triggers │
│    Webhooks      │
└──────────────────┘
       │
       ▼
┌──────────────────┐
│ Send Customer    │
│  Confirmation    │
└──────────────────┘

Step 1: Complete Admission API

Call the Fanfare API to mark an admission as completed:

// services/fanfare.service.ts
const FANFARE_API_URL = process.env.FANFARE_API_URL || "https://api.fanfare.io";
const FANFARE_ORG_ID = process.env.FANFARE_ORG_ID!;
const FANFARE_SECRET_KEY = process.env.FANFARE_SECRET_KEY!;

interface CompleteAdmissionParams {
  distributionId: string;
  distributionType: "queue" | "draw" | "auction" | "timed_release";
  consumerId: string;
  orderId?: string;
  orderAmount?: number;
}

export async function completeAdmission(params: CompleteAdmissionParams) {
  const { distributionId, distributionType, consumerId, orderId, orderAmount } = params;

  const endpoints: Record<string, string> = {
    queue: `/queues/${distributionId}/complete`,
    draw: `/draws/${distributionId}/complete`,
    auction: `/auctions/${distributionId}/complete`,
    timed_release: `/timed-releases/${distributionId}/complete`,
  };

  const endpoint = endpoints[distributionType];
  if (!endpoint) {
    throw new Error(`Unknown distribution type: ${distributionType}`);
  }

  const response = await fetch(`${FANFARE_API_URL}${endpoint}`, {
    method: "POST",
    headers: {
      "Content-Type": "application/json",
      "X-Organization-Id": FANFARE_ORG_ID,
      "X-Secret-Key": FANFARE_SECRET_KEY,
    },
    body: JSON.stringify({
      consumerId,
      metadata: {
        orderId,
        orderAmount,
        completedAt: new Date().toISOString(),
      },
    }),
  });

  if (!response.ok) {
    const error = await response.json();
    throw new Error(`Failed to complete admission: ${error.message}`);
  }

  return response.json();
}

Step 2: Integration with Order Creation

Call completion after successful order:

// services/order.service.ts
import { completeAdmission } from "./fanfare.service";

interface CreateOrderParams {
  consumerId: string;
  admissionToken: string;
  distributionId: string;
  distributionType: "queue" | "draw" | "auction" | "timed_release";
  items: OrderItem[];
  paymentId: string;
  totalAmount: number;
}

export async function createOrder(params: CreateOrderParams) {
  const { consumerId, admissionToken, distributionId, distributionType, items, paymentId, totalAmount } = params;

  // 1. Create order in database
  const order = await db
    .insert(orders)
    .values({
      consumerId,
      admissionToken,
      distributionId,
      distributionType,
      items,
      paymentId,
      totalAmount,
      status: "pending",
      createdAt: new Date(),
    })
    .returning();

  // 2. Update order status
  await db.update(orders).set({ status: "confirmed" }).where(eq(orders.id, order[0].id));

  // 3. Complete Fanfare admission
  try {
    await completeAdmission({
      distributionId,
      distributionType,
      consumerId,
      orderId: order[0].id,
      orderAmount: totalAmount,
    });

    // Mark as synced with Fanfare
    await db.update(orders).set({ fanfareSynced: true, fanfareSyncedAt: new Date() }).where(eq(orders.id, order[0].id));
  } catch (error) {
    // Log error but don't fail order
    console.error("Failed to sync with Fanfare:", error);

    // Queue for retry
    await queueFanfareSync(order[0].id);
  }

  return order[0];
}

Step 3: Retry Logic for Failed Completions

Handle cases where completion fails:

// workers/fanfare-sync.worker.ts
import { completeAdmission } from "../services/fanfare.service";

interface SyncJob {
  orderId: string;
  attempts: number;
  lastAttempt?: Date;
}

const MAX_ATTEMPTS = 5;
const RETRY_DELAYS = [1000, 5000, 30000, 120000, 600000]; // 1s, 5s, 30s, 2m, 10m

export async function processFanfareSyncQueue() {
  // Get pending sync jobs
  const pendingJobs = await db
    .select()
    .from(fanfareSyncQueue)
    .where(
      and(
        lt(fanfareSyncQueue.attempts, MAX_ATTEMPTS),
        or(isNull(fanfareSyncQueue.nextAttempt), lt(fanfareSyncQueue.nextAttempt, new Date()))
      )
    )
    .limit(10);

  for (const job of pendingJobs) {
    await processJob(job);
  }
}

async function processJob(job: SyncJob) {
  try {
    // Get order details
    const order = await db.select().from(orders).where(eq(orders.id, job.orderId)).limit(1);

    if (!order[0]) {
      // Order doesn't exist, remove job
      await db.delete(fanfareSyncQueue).where(eq(fanfareSyncQueue.orderId, job.orderId));
      return;
    }

    // Attempt completion
    await completeAdmission({
      distributionId: order[0].distributionId,
      distributionType: order[0].distributionType,
      consumerId: order[0].consumerId,
      orderId: order[0].id,
      orderAmount: order[0].totalAmount,
    });

    // Success - update order and remove job
    await db.update(orders).set({ fanfareSynced: true, fanfareSyncedAt: new Date() }).where(eq(orders.id, job.orderId));

    await db.delete(fanfareSyncQueue).where(eq(fanfareSyncQueue.orderId, job.orderId));

    console.log(`Fanfare sync successful for order ${job.orderId}`);
  } catch (error) {
    // Update job for retry
    const nextAttempt = new Date(Date.now() + RETRY_DELAYS[job.attempts] || 600000);

    await db
      .update(fanfareSyncQueue)
      .set({
        attempts: job.attempts + 1,
        lastAttempt: new Date(),
        nextAttempt,
        lastError: error instanceof Error ? error.message : "Unknown error",
      })
      .where(eq(fanfareSyncQueue.orderId, job.orderId));

    console.error(`Fanfare sync failed for order ${job.orderId}, will retry at ${nextAttempt}`);
  }
}

// Run every minute
setInterval(processFanfareSyncQueue, 60000);

Step 4: Handle Platform Webhooks

If using Shopify, WooCommerce, or similar platforms, handle their order webhooks:

Shopify Order Webhook

// routes/webhooks/shopify.ts
import express from "express";
import crypto from "crypto";

const router = express.Router();
const SHOPIFY_WEBHOOK_SECRET = process.env.SHOPIFY_WEBHOOK_SECRET!;

// Verify Shopify webhook signature
function verifyShopifyWebhook(req: express.Request): boolean {
  const hmac = req.headers["x-shopify-hmac-sha256"] as string;
  const body = (req as any).rawBody;

  const hash = crypto.createHmac("sha256", SHOPIFY_WEBHOOK_SECRET).update(body, "utf8").digest("base64");

  return hmac === hash;
}

router.post("/orders/paid", express.raw({ type: "application/json" }), async (req, res) => {
  // Verify signature
  if (!verifyShopifyWebhook(req)) {
    return res.status(401).send("Invalid signature");
  }

  const order = JSON.parse(req.body.toString());

  // Extract Fanfare data from order notes or metafields
  const fanfareData = extractFanfareData(order);

  if (fanfareData) {
    try {
      await completeAdmission({
        distributionId: fanfareData.distributionId,
        distributionType: fanfareData.distributionType,
        consumerId: fanfareData.consumerId,
        orderId: order.id.toString(),
        orderAmount: parseFloat(order.total_price),
      });

      console.log(`Completed admission for Shopify order ${order.id}`);
    } catch (error) {
      console.error("Failed to complete admission:", error);
      // Queue for retry
      await queueFanfareSync({
        orderId: order.id.toString(),
        ...fanfareData,
      });
    }
  }

  res.status(200).send("OK");
});

function extractFanfareData(order: any) {
  // Look for Fanfare data in note attributes
  const noteAttributes = order.note_attributes || [];

  const distributionId = noteAttributes.find((a: any) => a.name === "fanfare_distribution_id")?.value;
  const distributionType = noteAttributes.find((a: any) => a.name === "fanfare_distribution_type")?.value;
  const consumerId = noteAttributes.find((a: any) => a.name === "fanfare_consumer_id")?.value;

  if (!distributionId || !distributionType || !consumerId) {
    return null;
  }

  return { distributionId, distributionType, consumerId };
}

export default router;

WooCommerce Order Webhook

// routes/webhooks/woocommerce.ts
import express from "express";
import crypto from "crypto";

const router = express.Router();
const WC_WEBHOOK_SECRET = process.env.WC_WEBHOOK_SECRET!;

router.post("/orders/completed", express.json(), async (req, res) => {
  // Verify signature
  const signature = req.headers["x-wc-webhook-signature"] as string;
  const payload = JSON.stringify(req.body);

  const expectedSignature = crypto.createHmac("sha256", WC_WEBHOOK_SECRET).update(payload).digest("base64");

  if (signature !== expectedSignature) {
    return res.status(401).send("Invalid signature");
  }

  const order = req.body;

  // Extract Fanfare data from order meta
  const meta = order.meta_data || [];
  const fanfareData = {
    distributionId: meta.find((m: any) => m.key === "_fanfare_distribution_id")?.value,
    distributionType: meta.find((m: any) => m.key === "_fanfare_distribution_type")?.value,
    consumerId: meta.find((m: any) => m.key === "_fanfare_consumer_id")?.value,
  };

  if (fanfareData.distributionId && fanfareData.consumerId) {
    await completeAdmission({
      ...fanfareData,
      orderId: order.id.toString(),
      orderAmount: parseFloat(order.total),
    });
  }

  res.status(200).send("OK");
});

export default router;

Step 5: Order Status Tracking

Track order status for analytics and debugging:

// services/order-tracking.service.ts
interface OrderEvent {
  orderId: string;
  event: string;
  timestamp: Date;
  data?: Record<string, unknown>;
}

export async function trackOrderEvent(event: OrderEvent) {
  await db.insert(orderEvents).values({
    orderId: event.orderId,
    event: event.event,
    timestamp: event.timestamp,
    data: event.data,
  });

  // Also send to analytics
  analytics.track(event.event, {
    orderId: event.orderId,
    ...event.data,
  });
}

// Usage
await trackOrderEvent({
  orderId: order.id,
  event: "order_created",
  timestamp: new Date(),
  data: { consumerId, distributionType, amount: totalAmount },
});

await trackOrderEvent({
  orderId: order.id,
  event: "fanfare_admission_completed",
  timestamp: new Date(),
  data: { distributionId },
});

Step 6: Handle Order Cancellations/Refunds

When an order is cancelled or refunded:

// services/order.service.ts
export async function cancelOrder(orderId: string, reason: string) {
  const order = await getOrder(orderId);

  // Update order status
  await db
    .update(orders)
    .set({ status: "cancelled", cancelledAt: new Date(), cancelReason: reason })
    .where(eq(orders.id, orderId));

  // Note: Fanfare admissions are one-time use
  // A cancelled order doesn't "restore" the admission
  // The consumer would need to re-enter the experience

  // Track the cancellation
  await trackOrderEvent({
    orderId,
    event: "order_cancelled",
    timestamp: new Date(),
    data: { reason, consumerId: order.consumerId },
  });

  // Send cancellation notification
  await sendOrderCancellation(order);
}

Best Practices

1. Complete Admission Asynchronously

Don’t block the order confirmation on Fanfare completion:

// Good - async completion
const order = await createOrder(params);
res.json({ orderId: order.id }); // Return immediately

// Complete in background
completeAdmission(params).catch(console.error);

2. Implement Idempotency

Ensure completion can be called multiple times safely:

async function completeAdmissionIdempotent(params: CompleteAdmissionParams) {
  // Check if already completed
  const existing = await db
    .select()
    .from(completedAdmissions)
    .where(
      and(
        eq(completedAdmissions.distributionId, params.distributionId),
        eq(completedAdmissions.consumerId, params.consumerId)
      )
    );

  if (existing.length > 0) {
    console.log("Admission already completed");
    return existing[0];
  }

  // Proceed with completion
  return completeAdmission(params);
}

3. Monitor Sync Status

Create alerts for failed syncs:

// Monitor unsynced orders
async function checkUnsyncedOrders() {
  const unsynced = await db
    .select()
    .from(orders)
    .where(
      and(
        eq(orders.fanfareSynced, false),
        lt(orders.createdAt, new Date(Date.now() - 30 * 60 * 1000)) // 30+ minutes old
      )
    );

  if (unsynced.length > 0) {
    await sendAlert({
      type: "fanfare_sync_delayed",
      count: unsynced.length,
      oldestOrder: unsynced[0].id,
    });
  }
}

4. Include Order Metadata

Pass relevant data to Fanfare for analytics:

await completeAdmission({
  distributionId,
  distributionType,
  consumerId,
  orderId: order.id,
  orderAmount: order.totalAmount,
  metadata: {
    platform: "your-platform",
    itemCount: order.items.length,
    currency: order.currency,
  },
});

Troubleshooting

Admission Already Completed

// Handle gracefully
try {
  await completeAdmission(params);
} catch (error) {
  if (error.message.includes("already completed")) {
    // This is fine - idempotent operation
    console.log("Admission was already completed");
  } else {
    throw error;
  }
}

Consumer ID Mismatch

Ensure the consumer ID matches what was used during admission:

Store consumer ID with the admission token
Validate before checkout
Don’t allow different consumers to use the same admission

What’s Next

Webhooks Guide - Receive Fanfare webhooks
Shopify Integration - Shopify-specific patterns
Error Handling - Comprehensive error management

Overview

Integration Patterns

Authentication

Checkout Integration

Platform Integrations

Use Cases

Advanced

Order completion

Order Completion Guide

Overview

Prerequisites

The Completion Flow

Step 1: Complete Admission API

Step 2: Integration with Order Creation

Step 3: Retry Logic for Failed Completions

Step 4: Handle Platform Webhooks

Shopify Order Webhook

WooCommerce Order Webhook

Step 5: Order Status Tracking

Step 6: Handle Order Cancellations/Refunds

Best Practices

1. Complete Admission Asynchronously

2. Implement Idempotency

3. Monitor Sync Status

4. Include Order Metadata

Troubleshooting

Admission Already Completed

Consumer ID Mismatch

What’s Next

Overview

Integration Patterns

Authentication

Checkout Integration

Platform Integrations

Use Cases

Advanced

​Order Completion Guide

​Overview

​Prerequisites

​The Completion Flow

​Step 1: Complete Admission API

​Step 2: Integration with Order Creation

​Step 3: Retry Logic for Failed Completions

​Step 4: Handle Platform Webhooks

​Shopify Order Webhook

​WooCommerce Order Webhook

​Step 5: Order Status Tracking

​Step 6: Handle Order Cancellations/Refunds

​Best Practices

​1. Complete Admission Asynchronously

​2. Implement Idempotency

​3. Monitor Sync Status

​4. Include Order Metadata

​Troubleshooting

​Admission Already Completed

​Consumer ID Mismatch

​What’s Next

Order Completion Guide

Overview

Prerequisites

The Completion Flow

Step 1: Complete Admission API

Step 2: Integration with Order Creation

Step 3: Retry Logic for Failed Completions

Step 4: Handle Platform Webhooks

Shopify Order Webhook

WooCommerce Order Webhook

Step 5: Order Status Tracking

Step 6: Handle Order Cancellations/Refunds

Best Practices

1. Complete Admission Asynchronously

2. Implement Idempotency

3. Monitor Sync Status

4. Include Order Metadata

Troubleshooting

Admission Already Completed

Consumer ID Mismatch

What’s Next
